Customized Length LED Aluminum Extruded Profile by Shengxin with ISO Certified Standard
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | SHENGXIN |
| Model Number: | WM-SW1918 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 tons |
|---|---|
| Price: | $2,600.00/tons 5-9 tons |
| Payment Terms: | T/T,L/C,D/P D/A |
|
Detail Information |
|||
| Alloy Or Not: | Is Alloy | Secondary Or Not: | Non-secondary |
|---|---|---|---|
| Project Solution Capability: | NONE | Application: | Hotel, Industrial |
| Design Style: | Modern | Product Name: | Aluminum Profiles |
| Color: | Customized Colors | Standard: | GB2537 |
| Raw Material: | Aluminium Alloy 6000/5000/7000series | Certificate: | ISO9001/ISO14001/ISO18001 |
| Grade: | HIGH PRECISION GRADE | MOQ: | 1 Ton |
| Thickness: | 0.3-8mm | Payment Terms: | Contact |
Product Description

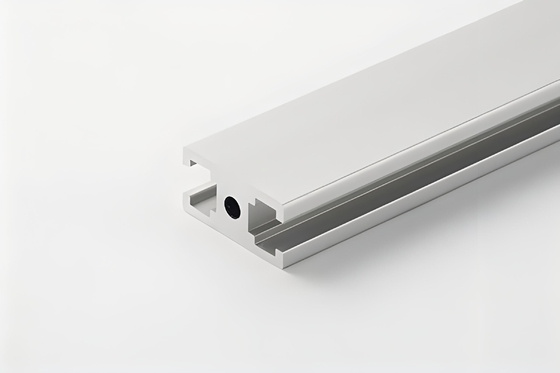

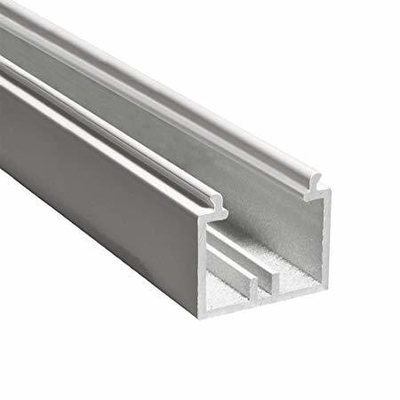

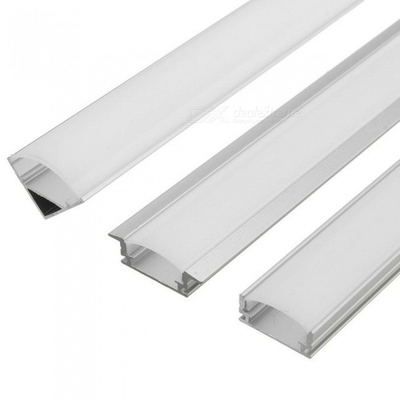

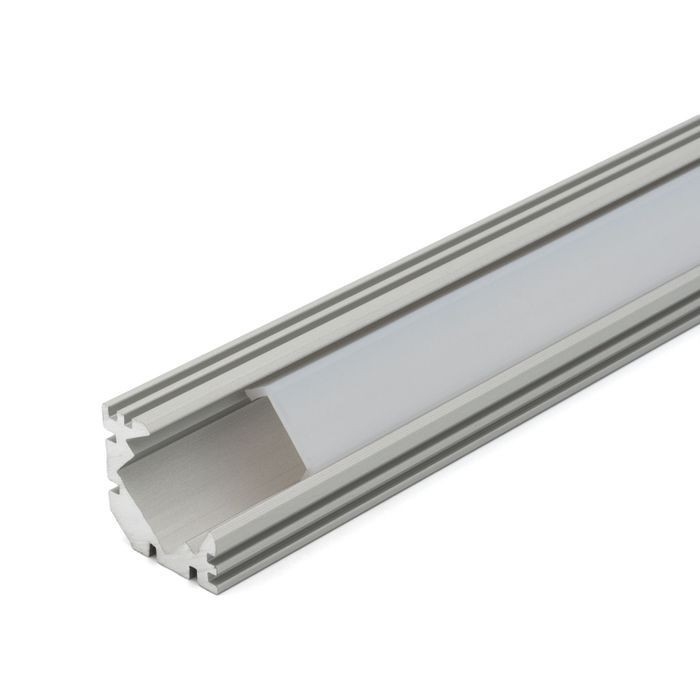

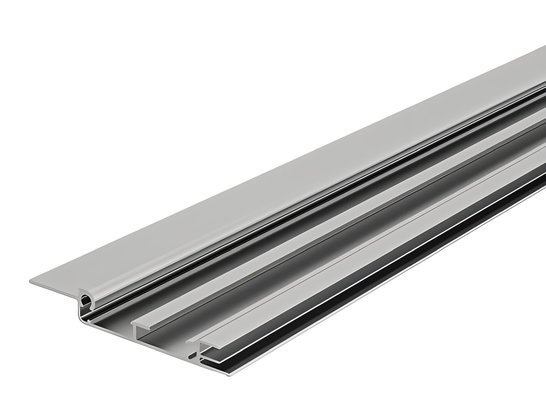

Shengxin China Professional Customized Length LED Aluminum Extruded Profile
PRODUCT DESCRIPTION
Chemical Composition of Aluminum Profile
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Ai | |
| Unit | Total | ||||||||||
| 6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | <0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
| 6060 | 0-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
| 6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
Anodized Surface Treatment
| Class | Min-average film thickness | Min-part film thickness |
| AA10 | 10 | 8 |
| AA15 | 15 | 12 |
| AA20 | 20 | 16 |
| AA25 | 25 | 20 |
(The anodized of goods is generally supplied in grade AA10 or is controlled according to client’s request.)
Electrophoresis Surface Treatment
| Class
| Anodizing | Paint film | Composite film | |
| Min-average film thickness(um) | Min-part film thickness(um) | Min-part film thickness(um) | Min-part film thickness(um) | |
| A | ≥10 | ≥8 | ≥12 | ≥21 |
| B | ≥10 | ≥8 | ≥7 | ≥6 |
| (Electrophoresis coating profiles is generally supplied by Class B,but also supply other levels according to customer’s requirement.) | ||||
Extensive Application such as, Building frames/Router fence/Modular framing systems/Machine frame/Structural framing system/Machine t slot table/Aquarium stand/Aquarium stand/Shelving systems/Cleanroom/Tradeshow Booths/Enclosures/Conveyors/Work Stations/Partitions/Material Shuttles/Material Carts
We have the molds for the following countries: Nepal, Algeria, Turkmenistan, Mauritius, Libya, Ukrane, Somalia, Cameroon, Ethiopia, Bosnia and Herzegovina, Ireland, Tunisia, Chile, Peru, Columbia, Argentina,Brazil, Bolivia, Philippines, India,Lebanon,Australia,Tunisia,Ecuador,Paraguay,Venezuela
Advantage(compare to most of other Chinese factory):
Lower labor cost, Lower land cost,
Lower tax cost, because we are in China local city, and the larggest enterprise in my city, supported by local govement.
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer with OEM/ODM service.
Q: How do I order your products?
A: If you would order our products,please contact us,we will pay a timely attention to you.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
